Building a Stripe AI Agent with Galileo Agent Reliability

Overview

In this tutorial, you’ll learn how to set up and run a complete AI agent that integrates with Stripe’s payment processing API via the Stripe Agent Toolkit while using Galileo for AI Agent Reliability. This tutorial is intended for TypeScript developers building AI agents with payment processing capabilities. It assumes you have basic knowledge of:

Some familiarity with TypeScript, Node.js, and the command line
Node.js 18+ and npm or yarn
Code editor of choice (VS Code, Cursor, Warp, etc.)
API keys for:
- Galileo (free developer account), Stripe (free developer sandbox), and OpenAI (should cost less than $5 to run)

By the end of this tutorial, you’ll be able to:

Set up a complete Stripe AI agent with Galileo observability
Handle natural language conversations for payment operations
Track all interactions and performance with Galileo
Monitor agent reliability and tool usage patterns

What you’ll build

For the sake of jumping right into action — we’ll be starting from an existing TypeScript application and demonstrating how to build a complete AI agent with payment processing capabilities. The Stripe AI Agent is a TypeScript-based application that can handle payment operations through natural language conversations. The agent includes:

Product Management: List products and prices from Stripe
Payment Processing: Create payment links for customers
Customer Management: Handle customer data and operations
Natural Language Interface: Process conversational requests
Galileo Observability: Track all interactions and performance

We’ll demonstrate how to observe the agent’s performance and evaluate payment processing quality with Galileo’s built-in metrics and observability features.

Prerequisites

Before you start, you’ll need to set up accounts and get API keys for the services we’ll be using.

Create a new Galileo project

In order to set up agent reliability tracking, we’ll need a Galileo project to log interactions to first.

Create a new project from the Galileo console using the `New Project` button

If you haven’t already, create a free Galileo account on app.galileo.ai. When prompted, add an organization name. To dive right into this tutorial, you can skip past the onboarding screen by clicking on the Galileo logo in the upper left hand corner.Create a new project by clicking on the New Project button on the upper right hand screen. You will be prompted to add a project name, as well as a log stream name.

Note: You will not be able to come back to this screen again, however there are helpful instructions to getting started in the Galileo Docs.

Get your Galileo API Keys

Once that is created, click on the profile icon in the upper right hand side of the page, navigate on the drop-down menu to API keys. From the API Keys screen, select Create New Key. Save the key within your environment file with the project name and log stream name you’ve created. A gif showing how to create your API keys within Galileo

A gif showing how to create your API keys within Galileo

Setting the metrics you want to track

Before running your application, set the metrics you want to track in your application by adding metrics to your log stream.Navigate to your project home inside of Galileo.Look for the name of your project, and open it up to the log stream you’ve got your traces in.Click on the Trace view and see your most recent runs listed below, it should look something like below.From this view, navigate to the upper right hand side of your screen and click on the Configure Metrics button. A side panel should appear with a set of different metrics from you to choose from.

An image with an arrow pointing to the Configure Metrics button from within the log stream interface.

Based on the Galileo documentation, here are some suggestions:

Tool Error: Detects errors during tool execution
Tool Selection Quality: Determines if the agent selected the correct tool and arguments
Context Adherence: Measures closed-domain hallucinations

Create a Stripe Developer Sandbox Account

Go to Stripe Dashboard and sign up for a free account. This will give you access to the Stripe sandbox environment for testing.

Get your Stripe API Keys

Navigate to the Developers section in your Stripe dashboard on the bottom left hand side of the screen. Copy your test secret key (starts with sk_test_) and paste it into your .env file as STRIPE_SECRET_KEY.

Note: Make sure you’re using the test keys, not the live keys, for this tutorial. The test environment allows you to simulate payments without processing real transactions.

Set up the project

Now let’s get the code and set up your development environment.

Clone the project in your IDE of choice

The starter project is in the sdk-examples/typescript/agent/stripe-agent-tool folder in the cloned repo.Navigate to the folder using the command line:

git clone https://github.com/rungalileo/sdk-examples
cd typescript/agent/stripe-agent-tool

Install dependencies

Install the required dependencies for the project.

npm install

Configure your .env file

Copy the example environment file and rename it to .env, then add your own API keys. Be sure the variables are added to your .gitignore file.When complete, it should look something like this:

.env

# Stripe Configuration
STRIPE_SECRET_KEY=sk_test_your_stripe_secret_key_here

# OpenAI Configuration
OPENAI_API_KEY=your_openai_api_key_here

# Galileo Configuration
GALILEO_API_KEY=your_galileo_api_key_here        #Your Galileo API Key
GALILEO_PROJECT=stripe-agent-demo                  #Your Galileo Project Name
GALILEO_LOG_STREAM=production                        #Your Galileo Log Stream Name
# OPTIONAL
# Provide the console URL below if you are using a custom deployment, and not using app.galileo.ai
# This is most common with enterprise, or on prem deployments where you may have your own custom cluster
# GALILEO_CONSOLE_URL=https://console.galileo.ai

# Agent Configuration
AGENT_NAME=StripePaymentAgent
AGENT_DESCRIPTION=An AI agent that helps with Stripe payment operations

Note: Replace the placeholder values with your actual API keys and be sure to have your .gitignore file updated to exclude the .env file.

Build the project

Compile the application to prepare to run locally on your machine.

npm run build

Running the agent

Now let’s start the agent and see it in action!

Start the interactive CLI mode

Start the interactive command-line interface to test your agent:

npm run interactive

This will:

Initialize the agent with Galileo’s agent reliability tools
Start a conversation session
Allow you to interact with the agent using natural language

Example interactions:

🚀 You: Show me your products
🤖 Assistant: Here are some of our products...

🚀 You: I want to buy a telescope
🤖 Assistant: I'll help you purchase a telescope...

Available Commands:

help - Show available commands and examples
quit or exit - Exit the application
clear - Clear the terminal screen
!end - Force flush Galileo traces (developer command)

Start the web mode

Check out the interface by running it in the browser, aiming to run this locally on your machine.

npm run web

The application will run on http://localhost:3000

Observing your agent in Galileo

Now let’s see how Galileo tracks your agent’s performance and interactions.

What’s tracked

Your agent automatically tracks:

Conversations and tool usage
Agent Errors and failure patterns
Session information
Tool selection quality and accuracy

Viewing your data

Navigate to your Galileo Dashboard

Go to your Galileo Dashboard and navigate to your project.

View traces and sessions

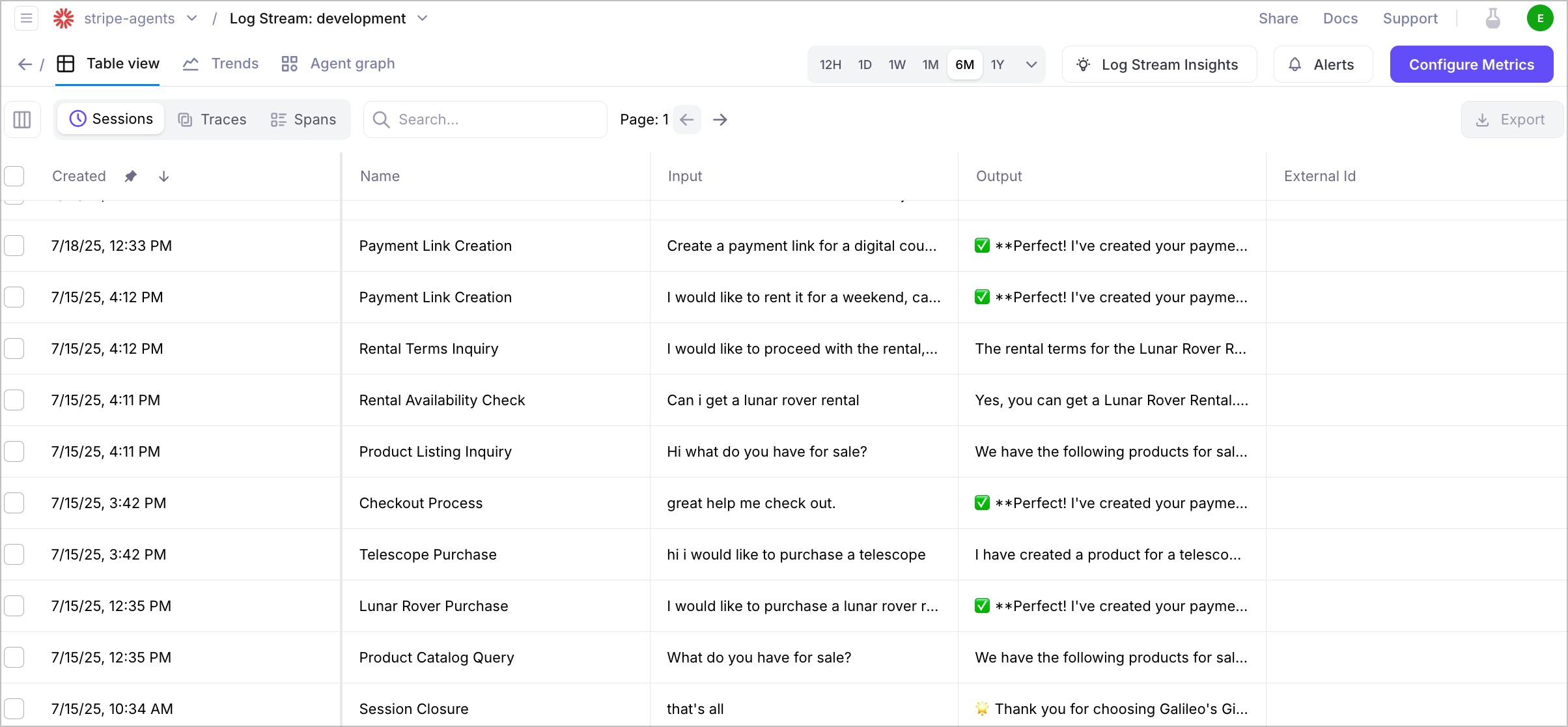

Click on your log stream to view traces, sessions, and metrics. You’ll be able to monitor agent performance over time. Stripe Agent Log Stream

Understanding the agent architecture

Now that you’ve seen the agent in action, let’s dive deeper into how it works internally.

Project structure

The project follows a clean, modular architecture designed for maintainability and observability:

src/
├── agents/
│   └── StripeAgent.ts          # Main agent implementation
├── config/
│   └── environment.ts          # Environment configuration
├── errors/
│   └── CircularToolError.ts    # Custom error handling
├── types/
│   └── index.ts               # TypeScript type definitions
├── interactive.ts             # CLI interface
└── server.ts                 # Web server

Key components

The Stripe Agent consists of several key components:

🧠 Agent core (`agents/StripeAgent.ts`)

Handles the main agent logic, coordinates tools, and processes requests. This is where the LangChain agent is initialized with Stripe tools and Galileo callbacks.

🛠️ Tools (Stripe Agent Toolkit)

Specialized modules for specific payment operations:

Product Tools: List products and prices from Stripe
Payment Tools: Create payment links and process transactions
Customer Tools: Manage customer data and operations
Subscription Tools: Handle recurring billing operations

📝 Configuration (`config/environment.ts`)

Defines the agent’s environment variables and configuration settings for Stripe, OpenAI, and Galileo integration.

🔍 Instrumentation (`interactive.ts` and `server.ts`)

Wraps the agent with Galileo monitoring for observability. This is where we add tracing and metrics.

📑 Types (`types/index.ts`)

Contains TypeScript type definitions for the agent’s data structures and API responses.

Main agent workflow

The main workflow in agents/StripeAgent.ts ties everything together and adds Galileo instrumentation for observability. Key Ingredients:

Galileo context management
LangChain agent with Stripe tools
Session tracking
Error handling and loop prevention

How it works:

Setting up the Galileo Callback:
```
await init();
this.galileoCallback = new GalileoCallback();
```
This initializes Galileo and creates a callback handler for tracking agent interactions.

Creating the main agent:

private async initializeAgent(): Promise<void> {
  const tools = await this.stripeToolkit.getTools();
  const prompt = await pull("hwchase17/structured-chat-zero-shot-react");

  this.agentExecutor = await createStructuredChatAgent({
    llm: this.llm,
    tools: allTools,
    prompt,
  });
}

This creates a LangChain agent with Stripe tools and structured chat capabilities.

Tool execution with tracing: Each tool call is automatically traced by Galileo through the LangChain callback:

const result = await this.agentExecutor.invoke({
  input: userInput,
  callbacks: [this.galileoCallback]
});

Session management: The agent maintains session context for better user experience:

private sessionContext: SessionContext | null = null;

interface SessionContext {
  sessionId: string;
  startTime: Date;
  conversationHistory: AgentMessage[];
  isActive: boolean;
  lastActivity: Date;
  messageCount: number;
  toolsUsed: Set<string>;
  metrics: {
    totalExecutionTime: number;
    successfulOperations: number;
    failedOperations: number;
    averageResponseTime?: number;
  };
}

Galileo’s role in observability: The Galileo-instrumented version of the agent includes several span types. Learn more about spans, the atomic unit of logging in Galileo, here.

Entrypoint span: Contains the entire conversation session with user inputs
Workflow span: Tracks the main agent logic and decision-making
Tool spans: Monitor individual Stripe API calls and success rates
Session spans: Track conversation context and user interaction patterns

This hierarchical structure lets you analyze the complete payment processing flow and identify bottlenecks, errors, or optimization opportunities.

The Stripe tools

Let’s examine the Stripe tools to understand how they work and where Galileo fits in. Key Ingredients:

Stripe API integration
LangChain tool definitions
Error handling
Response parsing

How it works:

API Integration: The tools make requests to the Stripe API to perform payment operations.
Tool Definition:
```
const tools = await this.stripeToolkit.getTools();
```
This gets all available Stripe tools from the Stripe Agent Toolkit.
Request processing: The tools handle various Stripe operations:
- List products: Fetches available products and pricing
- Create payment links: Generates payment URLs for customers
- Customer management: Creates and manages customer records
- Subscription handling: Processes recurring billing
Error handling: The tools include robust error handling to gracefully manage API failures and provide meaningful error messages.

Where Galileo comes In: The tools themselves don’t directly use Galileo. Instead, the main agent wraps tool execution with Galileo’s LangChain callback:

const result = await this.agentExecutor.invoke({
  input: userInput,
  callbacks: [this.galileoCallback]
});

This creates spans in Galileo that:

Capture the user’s natural language input
Record the agent’s tool selection and reasoning
Track tool execution time and success rates
Provide context for debugging and optimization

The conversation memory system

This system provides intelligent caching and context management for improved user experience. Key Ingredients:

5-minute caching system
Session context tracking
Conversation history management
Performance optimization

How it works:

Caching strategy: The agent implements a 5-minute cache for frequently accessed data:

private cachedProducts: any[] = [];
private cacheTimestamp: number = 0;
private readonly CACHE_DURATION = 5 * 60 * 1000; // 5 minutes

private isCacheValid(): boolean {
  return Date.now() - this.cacheTimestamp < this.CACHE_DURATION;
}

Session context: Each conversation session maintains context for better continuity:

interface SessionContext {
  sessionId: string;
  startTime: Date;
  conversationHistory: AgentMessage[];
  isActive: boolean;
  lastActivity: Date;
  messageCount: number;
  toolsUsed: Set<string>;
  metrics: {
    totalExecutionTime: number;
    successfulOperations: number;
    failedOperations: number;
    averageResponseTime?: number;
  };
}

Loop prevention: Advanced circular tool usage detection prevents infinite loops:

private detectCircularToolUsage(intermediateSteps: any[]): void {
  if (!intermediateSteps || intermediateSteps.length < 4) return;

  const recentTools = intermediateSteps
    .slice(-4)
    .map(step => step.action?.tool)
    .filter(tool => tool);

  const [tool1, tool2, tool3, tool4] = recentTools;

  if (tool1 === tool3 && tool2 === tool4 && tool1 !== tool2) {
    const pattern = [tool1, tool2];
    throw new CircularToolError(
      `Circular tool invocation detected: ${pattern.join(' -> ')} pattern repeated.`,
      pattern
    );
  }
}

Galileo integration: The conversation memory system is traced through session spans that track:

Session duration and activity patterns
Conversation flow and context switches
Tool usage patterns across sessions
Performance metrics over time

This allows you to analyze:

How users interact with the payment system
Common conversation patterns and pain points
Tool selection effectiveness

Customization

Now that you understand how the agent works, let’s explore how to customize it for your specific needs.

Adding new tools

To add new Stripe tools, modify the agent initialization:

private async initializeAgent(): Promise<void> {
  // Get tools from Stripe toolkit
  const tools = await this.stripeToolkit.getTools();

  // Add custom tools if needed
  const customTool = new DynamicTool({
    name: 'custom_tool',
    description: 'Your custom tool description',
    func: async (input: string) => {
      // Your custom logic here
      return 'Custom tool result';
    },
  });

  const allTools = [...tools, customTool];

  // Create the agent
  const prompt = await pull("hwchase17/structured-chat-zero-shot-react");

  this.agentExecutor = await createStructuredChatAgent({
    llm: this.llm,
    tools: allTools,
    prompt,
  });
}

Modifying prompts

To customize the agent’s behavior, modify the prompt template:

const customPrompt = ChatPromptTemplate.fromMessages([
  ["system", "You are a helpful Stripe assistant. Always be polite and professional."],
  ["human", "{input}"],
  ["human", "Chat History: {chat_history}"],
]);

Environment variables

Additional configuration options:

# Verbose logging
VERBOSE=true

# Custom Galileo console URL (for enterprise deployments)
# GALILEO_CONSOLE_URL=https://console.galileo.ai

# Agent configuration
AGENT_NAME=MyCustomAgent
AGENT_DESCRIPTION=Custom agent description

Troubleshooting

If you encounter issues, here are some common solutions.

Common issues

Missing environment variables

Check your .env file exists and verify all required variables are set:

# Check your .env file exists
ls -la .env

# Verify all required variables are set
cat .env | grep -E "(STRIPE|OPENAI|GALILEO)"

Galileo initialization failed

Check your Galileo API key and internet connection:

# Check your Galileo API key
echo $GALILEO_API_KEY

# Verify internet connection
curl -I https://app.galileo.ai

Stripe API errors

Verify your Stripe key format and test the connection:

# Verify your Stripe key format
echo $STRIPE_SECRET_KEY | grep "sk_test_"

# Test Stripe connection
curl -u $STRIPE_SECRET_KEY: https://api.stripe.com/v1/account

Agent not responding

Check your OpenAI API key and test the connection:

# Check OpenAI API key
echo $OPENAI_API_KEY

# Test OpenAI connection
curl -H "Authorization: Bearer $OPENAI_API_KEY" \
     https://api.openai.com/v1/models

Debug Mode

Enable verbose logging for troubleshooting:

VERBOSE=true npm run interactive

Manual Trace Flushing

Force flush Galileo traces in interactive mode:

# In interactive mode, type:
!end

Summary

In this tutorial, you learned how to:

Set up a complete Stripe AI agent with Galileo observability
Handle natural language conversations for payment operations
Track all interactions and performance with Galileo
Monitor agent reliability and tool usage patterns
Customize and extend the agent’s capabilities

Next steps

Check out other cookbooks in the Galileo cookbook library
Explore how to create custom metrics in Galileo using code
Learn more about the different out-of-the-box-metrics available in Galileo
Extend your agent with additional Stripe operations (refunds, subscriptions, etc.)
Implement user authentication and payment webhook handling

Overview

Get Started

How-to Guides

Cookbooks

Integrations

Concepts

SDK/API Reference

References

Building a Stripe AI Agent with Galileo Agent Reliability

Overview

What you’ll build

Prerequisites

Create a new Galileo project

Create a Stripe Developer Sandbox Account

Set up the project

Running the agent

Observing your agent in Galileo

What’s tracked

Viewing your data

Understanding the agent architecture

Project structure

Key components

🧠 Agent core (`agents/StripeAgent.ts`)

🛠️ Tools (Stripe Agent Toolkit)

📝 Configuration (`config/environment.ts`)

🔍 Instrumentation (`interactive.ts` and `server.ts`)

📑 Types (`types/index.ts`)

Main agent workflow

The Stripe tools

The conversation memory system

Customization

Adding new tools

Modifying prompts

Environment variables

Troubleshooting

Common issues

Debug Mode

Manual Trace Flushing

Summary

Next steps

Overview

Get Started

How-to Guides

Cookbooks

Integrations

Concepts

SDK/API Reference

References

​Overview

​What you’ll build

​Prerequisites

​Create a new Galileo project

​Create a Stripe Developer Sandbox Account

​Set up the project

​Running the agent

​Observing your agent in Galileo

​What’s tracked

​Viewing your data

​Understanding the agent architecture

​Project structure

​Key components

​🧠 Agent core (agents/StripeAgent.ts)

​🛠️ Tools (Stripe Agent Toolkit)

​📝 Configuration (config/environment.ts)

​🔍 Instrumentation (interactive.ts and server.ts)

​📑 Types (types/index.ts)

​Main agent workflow

​The Stripe tools

​The conversation memory system

​Customization

​Adding new tools

​Modifying prompts

​Environment variables

​Troubleshooting

​Common issues

​Debug Mode

​Manual Trace Flushing

​Summary

​Next steps

Overview

What you’ll build

Prerequisites

Create a new Galileo project

Create a Stripe Developer Sandbox Account

Set up the project

Running the agent

Observing your agent in Galileo

What’s tracked

Viewing your data

Understanding the agent architecture

Project structure

Key components

🧠 Agent core (`agents/StripeAgent.ts`)

🛠️ Tools (Stripe Agent Toolkit)

📝 Configuration (`config/environment.ts`)

🔍 Instrumentation (`interactive.ts` and `server.ts`)

📑 Types (`types/index.ts`)

Main agent workflow

The Stripe tools

The conversation memory system

Customization

Adding new tools

Modifying prompts

Environment variables

Troubleshooting

Common issues

Debug Mode

Manual Trace Flushing

Summary

Next steps
